ARB Air Compressor, 12 Volt, Single

  • Sale
  • Regular price

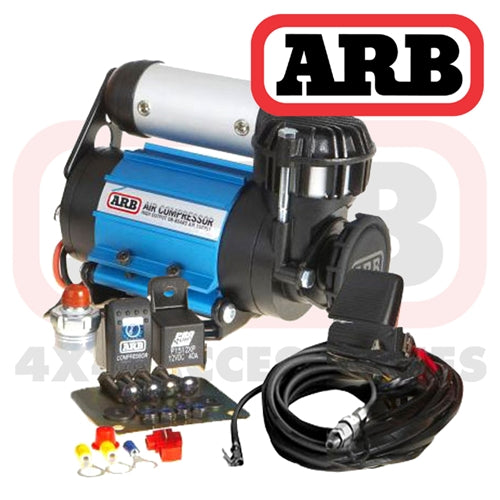

12V High Output ARB Air Compressor

Voltage: 12 Volt
Current Draw- Load/ No Load: 22.9/ 13 Amps
Air Flow- Load/ No Load: 2.18/ 2.65 CFM
Size- Inches: 5.6 x 7.5 x 3.8
Duty Cycle: 50%
Weight: 10 lbs.
Manufacturer: ARB
Warranty: 2 Year

Tech Note:

We highly recommend running this air compressor with an air manifold 171503 to use 2 ARB Air Lockers. You can also inflate tires with a 171302 Pump Up Kit and fill them even faster when paired with a 171601 1 gallon air tank.

"Permanently mounted, this compressor is installed into your truck and includes a full wiring loom with air locker solenoid plug in contacts, mounting hardware with reinforcing bracket and quality compressor isolating switch. So what makes this compressor special? It's small enough to fit into even the tightest space and quiet enough to mount in the cab. It has enough output to air up four 35" - 37" tires in a single duty cycle and typically airs up a 35" tire in just over two minutes. And, it works. We've tested this unit in ovens, freezers, underwater and in the silty dust of the Simpson Desert and it continues to perform."

www.arbusa.com

Features & Benefits:

  • Includes:
  • Full assembled and bench tested air compressor.
  • Complete wiring loom with Air Locker™ solenoid plug-in contacts.
  • OEM quality compressor isolating switch.
  • Air Locker™ supply rated pressure switch.
  • Relocatable splash resistant air filter with washable high-flow sintered bronze filter cartridge.
  • Mounting hardware with reinforcing backing plate.
  • Comprehensive photo illustrated installation guide.
  • Compact design makes it the highest flowing compressor in its class (voltage vs size).
  • Fully sealed components for moisture and dust.
  • Pressure switch controlled air manifold systems specially designed to suit ARB Air Locker™ equipped vehicles.
  • Hard anodized cylinder bore and PTFE (Teflon) impregnated carbon fiber piston seal for reduced friction and maximum trouble free life.
  • New anodized mounting bracket dissipates motor heat and allows compressor to be repositioned 180°.
  • Anti-vibration/sound deadening mount.
  • Relocatable splash resistant air filter assembly for cleaner, cooler air supply.
  • and versatile waterproof air intake positioning.
  • High density, high flow washable sintered bronze air filter element.
  • Maxi-Fuse equipped for professional in-line circuit protection.
  • Motor is 100% ball bearing equipped with unique linear brush pre-load system for extra long life, low heat and quiet operation.
  • Compressor piston is equipped with a German made high shock rated cylindrical roller bearing.
  • Constructed entirely of light weight, high strength engineering grade materials, including military and aerospace grade components.
  • Over-pressure safety valve equipped.
  • Motor is internally thermal protected against extreme temperature damage.
  • Compressor piston is equipped with a German made high shock rated cylindrical roller bearing
  • Constructed entirely of light weight, high strength engineering grade materials, including military and aerospace grade components
  • Over-pressure safety valve equipped
  • Motor is internally thermal protected against extreme temperature damage

Available Add-ons:

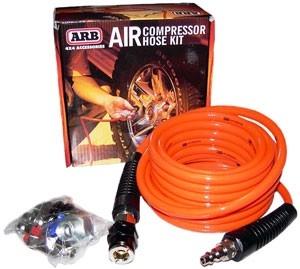

ARB Tire Pump Up Kit 171302 (PUKT)

ARB's optional tire pump up kit is a must have for any trail rig. Makes it way too easy for airing those tires back up after a day of wheeling. Also includes attachments for airing up football, soccer ball, volley ball, air mattress, or even your blow up doll!

Kit Contents:
High Heat Tolerant 20' Poly Air Hose
T-Fitting Quick Disconnect
Locking Tire Chuck
Needle for balls
Attachments for airing up air mattresses/swimming floaties, etc.

ARB E-Z Tire Deflator with Pressure Gauge - 0-60 PSI - ARB Part #505

The unique, patented design of the E-Z deflator allows for removal of the valve core for rapid tire deflation, while also providing accurate tire reading via the simple movement of a sliding valve.

Features:
Corrosion resistant brass/stainless deflator tool
Quality bronze Bourdon Tube gauge design ensures accuracy is not affected by changes in temperature, humidity or altitude
Fully geared, solid brass precision movement
Protective rubber gauge guard
Easy to read dial with 1 PSI increments
Thoroughly designed and tested to ensure accuracy
Includes protective canvas pouch and instruction sheet

ARB Digital Tire Inflator


Keeping accurate tire pressure is a necessity for good fuel economy, prolonged tire life and maximum traction off road. Introducing the new ARB Digital Tire Inflator Gauge, which is ready to provide accurate readings and inflation for your next 4WD adventure.

An accurate air pressure gauge and tire inflation equipment in your vehicle is a necessity for any four wheel enthusiast. Running the correct tire pressures for different situations and or vehicle load changes is an extremely simple operation with its large, blue backlight display, thumb operation inflator button and simple deflator bleed button.

The 23.5 inch dual swivel PVC coated braided hose and clip-on air chuck eliminates the need to bend over while airing up at the end of a long day on the trail and the backlight ensures you know the exact pressures no matter if it is day or night when you are airing up.

ARB601 ARB Digital Tire Inflator
Features & Benefits:
  • Large LCD Digital readouts with blue backlight
  • Battery indicator
  • Multiple measurements (Scale: 0-200 PSI / 0-14 Bar / 0-1400 KPA)
  • Rubber bump guard to protect against drops and knocks
  • Coated thumb trigger
  • 23.5 inch dual swivel PVC coated braided hose
  • Push on chuck type
  • Accuracy to +/- 1 PSI within 25-75 PSI range
  • Max Supply pressure - 350 PSI, 240 KPA
  • Up to 200 hours runtime on set of batteries

    Technical Specifications:
  • 1/4 NPT Female (suites ARB fittings, included)
  • Batteries - x2 AAA (supplied)
  • Battery Life - up to 200 hours
  • Auto switch on and auto switch off

    Size:
  • Without Hose - 8.2" L x 2.95" W x 2.95" H
  • With Hose - 29.5" L x 2.95" W x 2.95" H
